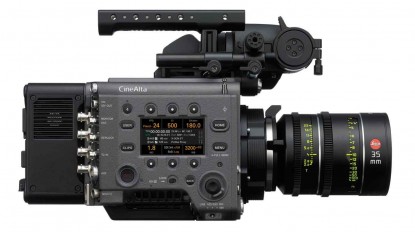

Sony Venice
Product code: 1967
Features:
GENERAL
Power Requirements
DC12V (11～17.0V)
DC24V (22~32.0V)
Operating Temperature
0 to 40℃
Storage Temperature
-20℃ to 60℃
Mass Approx.
3.9kg (8lb 10oz) (without lens, handle, VF
attachment
expansion bottom plate and accessories)
Dimensions
133 x 159 x 172 mm (without protrusion)
CAMERA
Imaging Device
Full-Frame CMOS
Imaging Device Pixel Count
24.7M (total), 24.4M (effective)
Imaging Device Size
36.2x24.1mm. 43.5mm (diagonal).
Built-In ND Filters
Clear, 0.3(1/2), 0.6(1/4), 0.9(1/8),
1.2(1/16),
1.5(1/32), 1.8(1/64), 2.1(1/128),
2.4(1/256)
ISO Sensitivity
ISO500F
Lens Mount
PL Mount
E-mount (lever lock type, without supplied
PL lens mount adaptor)
Latitude
15+ Stop
Select FPS*
Imager mode:
3.8K 16:9, 4K 17.9: 1-60FPS
4K 4:3: 1-48FPS
4K 6:5, 5.7K 16:9, 6K 17:9, 6K 1.85:1, 6K
2.39:1: 1-30FPS
6K 3:2: 1-24FPS
White Balance
2000~15000Kelvin and Green/Magenta adjust,
AWB*
Gamma Curve
S-Log3
RECORDING
Recording Format (Video)
XAVC 4K Class480:
23.98p, 24p, 25p, 29.97p
XAVC 4K Class300:
23.98p, 24p, 25p, 29.97p, 50p, 59.94p
XAVC QFHD Class480:
23.98p, 25p, 29.97p
XAVC QFHD Class300:
23.98p, 25p, 29.97p, 50p, 59.94p
MPEG HD422(1920x1080):
23.98p, 24p, 25p, 29.97p, 50i, 59.94i
HD ProRes 422HQ*:
23.98p, 24p, 25p, 29.97p, 50p, 59.94p,
50i, 60i
HD ProRes 422*:
23.98p, 24p, 25p, 29.97p, 50p, 59.94p,
50i, 59.94i
HD ProRes 422 Proxy*:
23.98p, 24p, 25p, 29.97p, 50p, 59.94p,
50i, 59.94i
Recording Format (RAW/X-OCN) *required AXS-R7
RAW SQ:
4K 17:9 (4096 x 2160):
23.98p, 24p, 25p, 29.97p, 50p, 59.94p
3.8K 16:9 (3840 x 2160):
23.98p, 25p, 29.97p, 50p, 59.94p
X-OCN ST/LT:
6K 3:2(6048 x 4032):
23.98p, 24p,
6K 2.39:1 (6048 x 2530)*:
23.98p, 24p, 25p, 29.97p
6K 1.85:1 (6048 x 3270)*:
23.98p, 24p, 25p, 29.97p
6K 17:9 (6048 x 3190)*:
23.98p, 24p, 25p, 29.97p
5.7K 16:9 (5672 x 3190)*:
23.98p, 25p, 29.97p
4K 6:5(4096x3432)*:
23.98p, 24p, 25p, 29.97p
4K 4:3(4096x3024):
23.98p, 24p, 25p*, 29.97p*
4K 17:9 (4096 x 2160):
23.98p, 24p, 25p, 29.97p, 50p, 59.94p
3.8K 16:9 (3840 x 2160):
23.98p, 24p, 25p, 29.97p, 50p, 59.94p
Recording Format (Audio)
LPCM 4ch , 24-bit 48-kHz
INPUTS/OUTPUTS
DC Input
XLR-type 4pin (male)
Battery DC Input
Square-shaped 5pin connector
DC Output
12V: Hirose 4pin x1
24V: Fischer 3pin x2
SDI Output
BNC×4, (12G, 3G, 1.5G-SDI)
HD MONI Output
BNCx1 (1.5G-SDI)
HDMI Output
Type A ×1
VF
LEMO 26pin
Audio Input
XLR-type 5pin (female) x1 (LINE/ AES/EBU /
MIC / MIC+48V selectable)
Timecode Input
BNC x1
Genlock Input
BNC x1
AUX
LEMO 5pin (female) x1 (Timecode Output)
Remote*
8pin x1
Lens*
12pin x1
Lens Mount Hot Shoe
4pin x2, conforming to Cooke /i
Intelligent Electronic Lens System
Network*
RJ-45 type x1, 10BASE-T, 100BASE-TX
USB*
USB host, type-A x1
Headphone Output
Stereo mini jack x1
Speaker Output
Monaural
Media type
ExpressCard/34 slot×2
SD card slot ×1
Imager Mode
5.7K 16:9
6K 2.39:1
Hardware
12 pin lens remote
Network Function
Wired LAN control (FULL MENU)
Wireless LAN control (with CBK-WA02)
