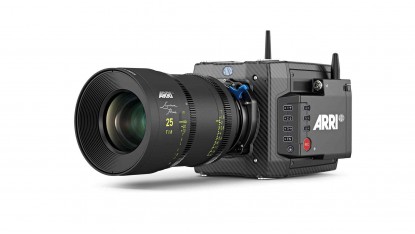

Arri Alexa Mini LF
Product code: 2074
Features:
IMAGE SENSOR
Image Sensor Size
36.7 x 25.54 mm (ARRI Large Format)
Sensor Type
CMOS
Sensor Resolution
Actual: 4448 x 3096
Pixel Pitch
8.25 µm
Advertised Dynamic Range
14 Stops
CAMERA
Lens Communication
Yes, Cooke /i, ARRI LDS, ARRI LDS-2
Internal Filter Holder
No
Shutter Speed
1/1 to 1/8000 sec
Shutter Angle
5 to 356°
Built-In ND Filter
Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type
Stereo
Recording Media
1 x Codex Compact Drive Card Slot
INTERNAL RECORDING
Raw Recording
MXF/ARRIRAW:
4448 x 3096 at 40 fps
4448 x 1856 at 60 fps
Recording Modes
MXF/ProRes 4444XQ:
4480 x 3096p up to 40 fps
4448 x 1856p up to 60 fps
3840 x 2160p up to 60 fps
2048 x 1152p up to 90 fps
1920 x 1080p up to 90 fps
MXF/ProRes 4444 4:4:4:
4480 x 3096p up to 40 fps
4448 x 1856p up to 60 fps
3840 x 2160p up to 60 fps
2048 x 1152p up to 90 fps
1920 x 1080p up to 90 fps
MXF/ProRes 422HQ 4:2:2:
4480 x 3096p up to 40 fps
4448 x 1856p up to 60 fps
3840 x 2160p up to 60 fps
2048 x 1152p up to 90 fps
1920 x 1080p up to 90 fps
Gamma Curve
ARRI Log C, Rec2020, Rec709
Audio Recording
MXF: 2-Channel 24-Bit 48 kHz LPCM Audio
INTERFACES
Video Connectors
2 x BNC (6G-SDI) Output
Audio Connectors
1 x 6-Pin LEMO Input
Other I/O
1 x 5-Pin LEMO Timecode Data Input/Output
1 x 10-Pin LEMO LAN Data, Control Input/Output
1 x BNC Sync Control Input
1 x 7-Pin LEMO Monitor, Video Input/Output
1 x USB Type-A USB 2.0 Data
1 x Proprietary Viewfinder
Wireless Interfaces
2.4 GHz Wi-Fi Control
POWER
Power Connectors
1 x 8-Pin LEMO (10.5 to 34 VDC) Input
1 x 3-Pin RS (24 VDC) Output
1 x 2-Pin LEMO (12 VDC) Output
1 x Proprietary (24 VDC) Output
Power Consumption
≥65 W
ENVIRONMENTAL
Operating Temperature
-4 to 113°F / -20 to 45°C
Storage Temperature
-22 to 158°F / -30 to 70°C
GENERAL
Dimensions
7.4 x 5.6 x 5.5" / 18.8 x 14.22 x 13.97 cm
Weight
6 lb / 2.72 kg
