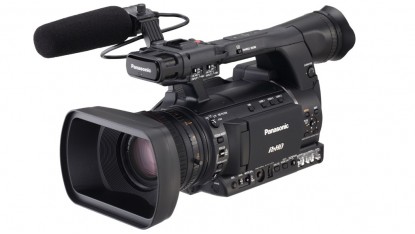

Panasonic AG-HPX250 P2

Product code: 1447

Features:

Power Supply: DC7.2V (using battery)
7.9V (using AC adaptor)
Power Consumption: 15W (when LCD Monitor ON)
Operating Temperature: 0°C to 40°C
Operating Humidity: 10% to 80% (no condensation)
Weight: Approx. 2.5 kg (camcorder only)
Dimensions (WxHxD): 180 mm × 195 mm × 438 mm, excluding the projection part
Pick-up Device: 1/3 Type Progressive, 2.2Mil Pixels, 3MOS
Number of Effective Pixels (HxV): 1920 x 1080
Lens: Panasonic lens with optical image stabilizer, motorized/manual mode switching, 22x zoom,
F1.6 – 3.2 (f=3.9mm to 86mm / 35mm equivalent: 28 mm to 616 mm, 16:9)
Filter Diameter: 72 mm
Optical Color Separation: Prism system
ND Filter: OFF, 1/4, 1/16, 1/64
Minimum shooting distance: Approx. 1 meter
Gain Selection: 0/+3/+6/+9/+12/+15/+18/+24/+30dB (+24 & +30 dB are to be allocated only for USER SW)
Shutter Speed (Preset): 50i/50p mode: 1/50 sec.(OFF), 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
25p mode: 1/25 sec.(OFF), 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
60i/60p mode: 1/60 sec.(OFF), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
30p mode: 1/30 sec.(OFF), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
24p mode: 1/24 sec.(OFF), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
Slow Shutter Speed: 50i/50p mode: 1/12.5 sec. and 1/25 sec.
25p mode: 1/6.25 sec. and 1/12.5 sec.
60i/60p mode: 1/15 sec. and 1/30 sec.
30p mode: 1/7.5 sec. and 1/15 sec.
24p mode: 1/6 sec. and 1/12 sec.
Shutter Speed (Synchro Scan): 50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.
60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
30p mode: 1/30.0 sec. to 1/249.8 sec.
24p mode: 1/24.0 sec. to 1/249.8 sec.
Aperture Angle: 3 degree to 359.5 degree, by 0.5 degree step selectable
Sensitivity: 50 Hz mode:
F8 (2000lx, 3200K, 89.9% reflection, 1080/50i, P.A.P. FILTER: TYPE2)
F11 (2000lx, 3200K, 89.9% reflection, 1080/50i, P.A.P. FILTER: TYPE1)
59.94 Hz mode:
F7 (2000lx, 3200K, 89.9% reflection, 1080/59.94i, P.A.P. FILTER: TYPE2)
F10 (2000lx, 3200K, 89.9% reflection, 1080/59.94i, P.A.P. FILTER: TYPE1)
Minimum Luminance: 0.2 lx (when F1.6, +30dB of gain, and 1/30 sec. of shutter speed, P.A.P. FILTER: TYPE1)
Digital Zoom: 2x / 5x / 10x
Recording Media: P2 Card
Recording Format: AVC-Intra 100 / AVC-Intra 50 / DVCPRO HD / DVCPRO50 / DVCPRO / DV
Recording Time: AVC-Intra 100/DVCPRO HD:
Approx. 16 min. with a 16GB P2 card
Approx. 32 min. with a 32GB P2 card
Approx. 64 min. with a 64GB P2 card
AVC-Intra 50/DVCPRO50:
Approx. 32 min. with a 16GB P2 card
Approx. 64 min. with a 32GB P2 card
Approx. 128 min. with a 64GB P2 card
DVCPRO/DV:
Approx. 64 min. with a 16GB P2 card
Approx. 128 min. with a 32GB P2 card
Approx. 256 min. with a 64GB P2 card
*Time shown above is when you record a series of 1 shot to P2 card. Depending on numbers of shots you record, time will get shorter than the number shown above.
Recording Video Format: 1080/50i, 1080/25p, 1080/25pN, 720/50p, 720/25p, 720/25pN, 576/50i, 576/25p,
1080/59.94i, 1080/29.97p, 1080/29.97pN, 1080/23.98p, 1080/23.98pA, 1080/23.98pN,
720/59.94p, 720/29.97p, 720/29.97pN, 720/23.98p, 720/23.98pN, 480/59.94i, 480/29.97p, 480/23.98p, 480/23.98pA
Sampling Frequency: AVC-Intra 100/DVCPRO HD:
Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50Hz)
Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94Hz)
DVCPRO50:
Y: 13.5 MHz, PB/PR: 6.75 MHz
DVCPRO:
Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing: AVC-Intra 100/AVC-Intra 50: 10 bits
DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bits
Video Compression: AVC-Intra 100/AVC-Intra 50: MPEG-4 AVC/H.264 Intra Profile
DVCPRO HD: DV base compression (SMPTE 370M)
DVCPRO 50/DVCPRO: DV base compression (SMPTE 314M)
DV: DV compression (IEC 61834-2)
Recording Audio Signal: AVC-Intra 100 / AVC-Intra 50 / DVCPRO HD: 48kHz/16bits, 4CH
DVCPRO50: 48kHz/16bits, 4CH
DVCPRO/DV: 48kHz/16bits, 2CH/4CH switchable
GENLOCK IN: BNC x 1, 1.0Vp-p, 75 Ω
GENLOCK IN Additional Information: BB or HD-Y
VIDEO OUT: Pin jack x 1, 1.0Vp-p, 75 Ω
SDI OUT: BNC x 1 (10 bits 4:2:2 camera through), 0.8Vp-p, 75 Ω, HD/SD switchable
HDMI OUT: HDMI x 1, Type A
Built-in Microphone: Stereo microphone
Audio IN: XLR (3 pins) × 2 (INPUT 1, INPUT 2)
LINE / MIC / +48V switchable
LINE: 0 dBu
MIC: -40 / -50 / -60 dBu (selectable in menu)
Audio IN Additional information: Headroom 12dB
Audio Out: Pin jack x 2 (CH 1, CH 2), Output: 316 mV, 600 Ω
Headphone: Stereo mini jack (3.5 mm diameter) × 1
Built-in Speaker: 20 mm (round) × 1
Camera Remote: Super Mini jack (2.5mm diameter) x 1 for ZOOM and recording START/STOP operations
Mini jack (3.5mm diameter) x 1 for FOCUS and IRIS controls
TC IN/OUT: BNC × 1
IN: 0.5 to 8 Vp-p, 10 kΩ
OUT: 2.0±0.5 Vp-p, low impedance
IEEE 1394 IN/OUT: 6 Pin, Digital IN/OUT, based on IEEE 1394 Standard
USB2.0 (DEVICE): Type mini B connector (compliant with USB ver. 2.0)
USB2.0 (HOST): Type A connector (compliant with USB ver. 2.0)
LCD Monitor: 3.45 inches, LCD color monitor, approx. 921,000 pixels (16:9)
Viewfinder: 0.45 inches, LCD color viewfinder, approx. 1,226,000 pixels (16:9)
Standard Accessories:

Battery Pack x 1 (7.2V, 5400mAh), Battery Charger, AC Adapter, AC cable x2, Wireless Remote Controller with button-type battery, Microphone
Holder, Eye Cup, Shoulder Belt, Lens Hood, Grip Belt, CD-ROM,
Microphone Holder Screws x4, Microphone Holder Adaptor, Lens Cap, INPUT Terminal Cap x2

Panasonic AG-HPX250 P2 operation manual
